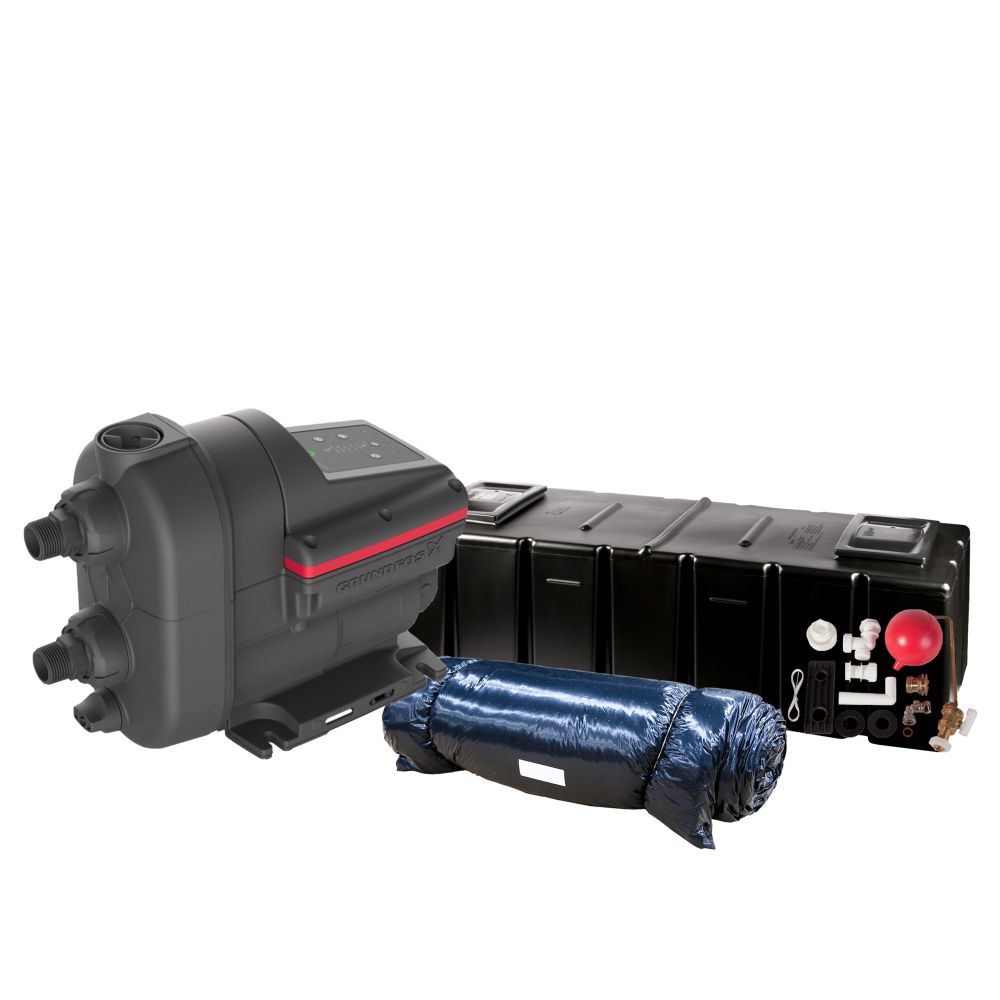

Grundfos Scala2 3-45 Booster Pump

The Grundfos SCALA2 is a fully integrated, self-priming, compact waterworks for pressure boosting in domestic applications. SCALA2 incorporates integrated speed control enabling the keeping of the perfect pressure at the taps, meaning that the pump performance will increase with increasing demand.

Key features:

• Perfect water pressure: Intelligent pump control adjusts operation automatically
• Low noise: As quiet as a modern dishwasher (47 dB(A) in typical use)
• Easy selection: One variant for all domestic boosting needs
• Easy installation: Compact, all-in-one solution, plug-and-pump
• Easy to operate: User-friendly control panel
• Reliable operation: Dry-running protection, anti-cycling
• Long lifetime: Quality-tested to perfection, maintenance-free

The SCALA2 can be installed in three easy steps:

• Connect the pipes.
• Prime the pump.
• Plug the pump into the power outlet and the pump will start.

Please Note - This pump cannot be fitted directly to the water mains. A minimum of 1" suction pipe is required.

As it is self-priming, the SCALA2 is able to pump water from a level below the pump. Provided it is filled with water, the pump is able to lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.

If exposed to dry running, water shortage or excessive temperature, blocked pump, for example in case of seizure or overload, the pump will stop automatically, thus preventing a motor burnout. Thanks to its hydraulic design, permanent magnet motor and water cooling, the pump is extremely low-noise, 47 dB(A) in typical use, which makes it suitable for indoor as well as outdoor use. Max. Noise level at full load are 53 dB(A)

SCALA2 require no maintainance, but it is recommended to keep the pump clean, check the non-return valves and keep the ventilation holes free of dust.

PolyTank 70 Gallon Coffin Tank

The Polytank 70 Gallon Coffin Tank (model 64-24-19) is a rectangular cold water storage tank designed for loft installations. It has a capacity of 318 liters (70 gallons) and dimensions of 1650mm (64 inches) in length, 610mm (24 inches) in width, and 500mm (19 inches) in height.

This tank is WRAS approved and kitemarked to BS4213:2004, ensuring compliance with UK water regulations.

Kit Includes:

• 1 x Coffin Tank
• 1 x Tank Jacket
• 1 x Screened Warning Pipe Elbow
• 1 x Vent Pipe Sleeve
• 1 x Screened Breather
• 1 x Dip Tube
• 1 x Ballvalve Backplate
• 1 x 1/2" Part 2 Ballvalve and Float
• 1 x 22mm Compression Tank Connector
• 1 x 15mm Chrome Bent Service Valve
